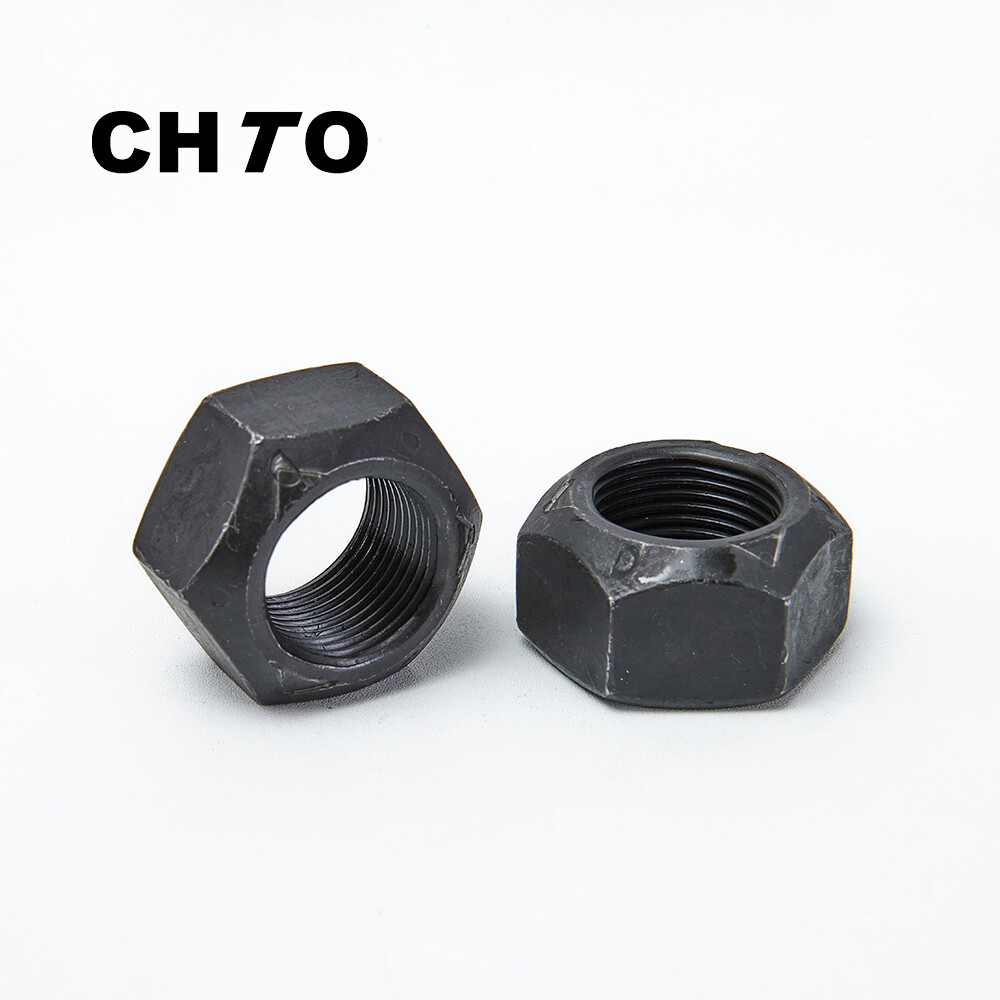

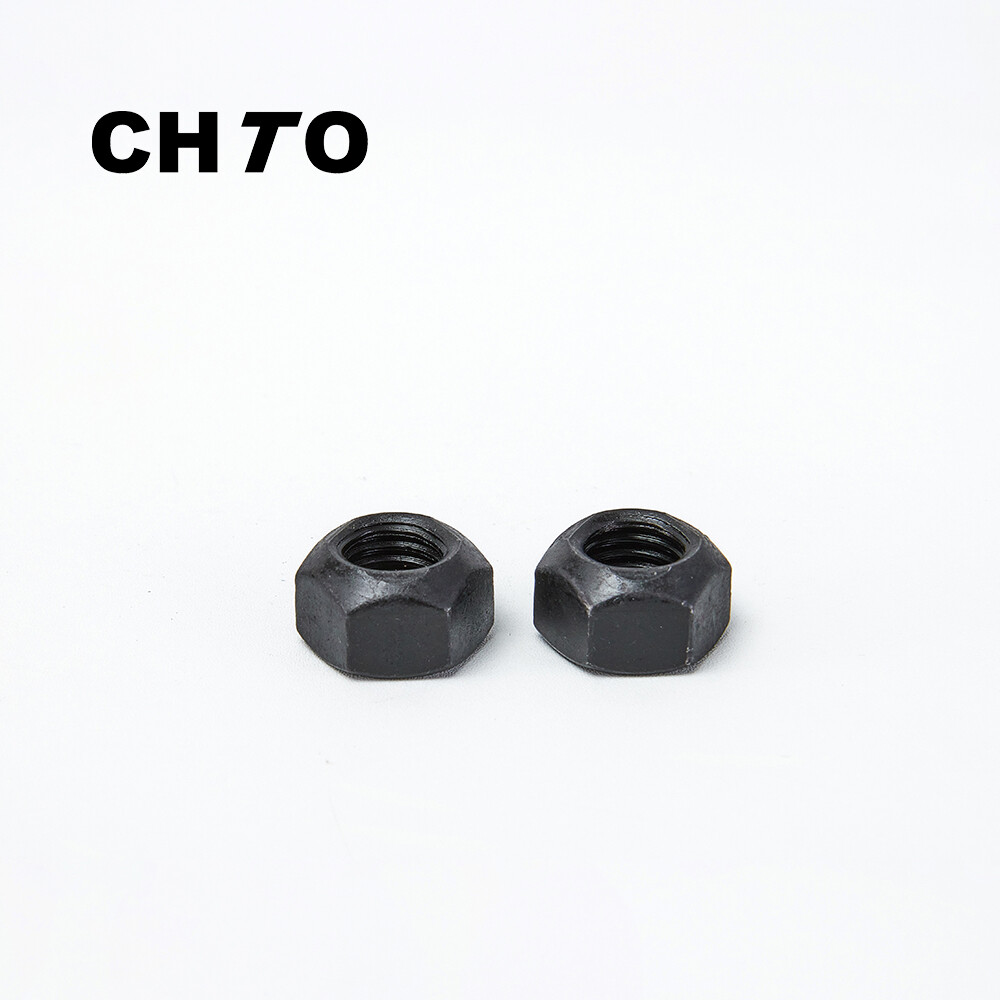

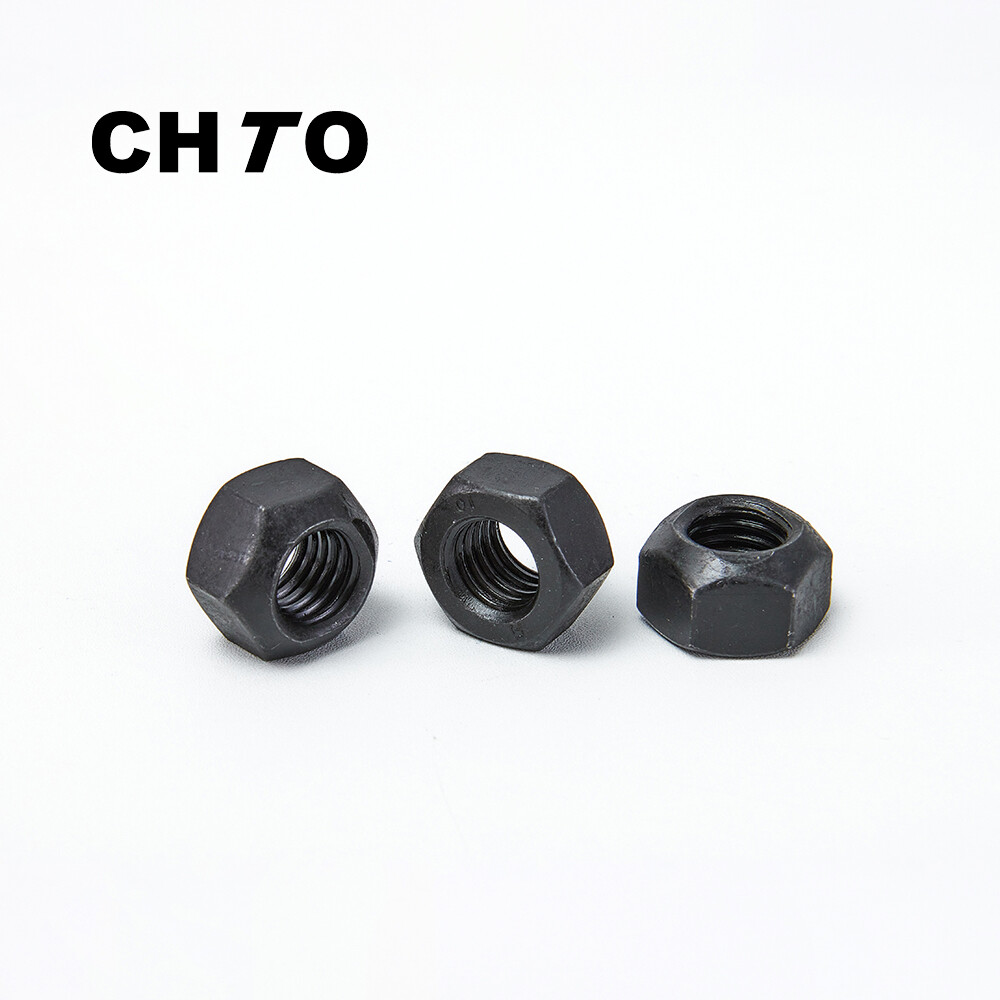

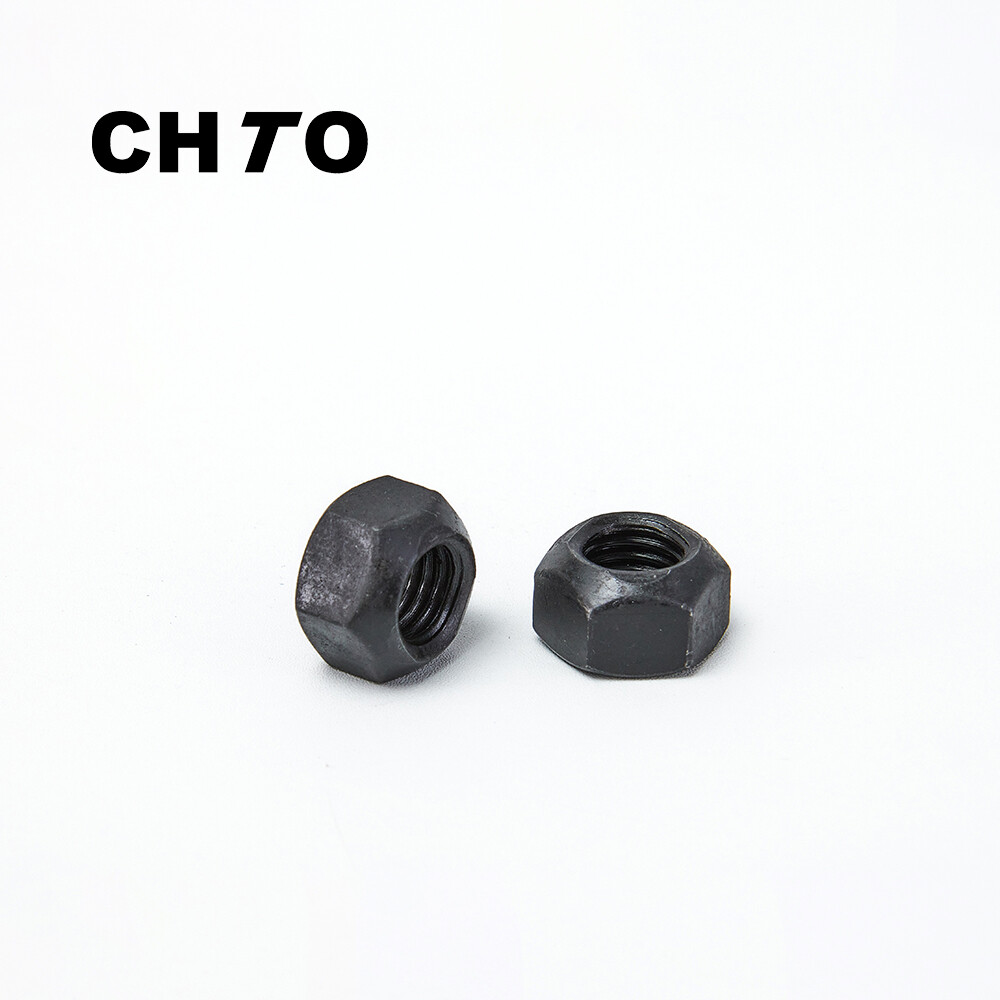

IFI100/107 Hex Nuts All Metal Lock Nuts Deformed
IFI100/107 Hex Nuts All Metal Lock Nuts Deformed
When the nut is screwed in, due to the locking function of the nut, the torque generated by screwing in the nut is called effective torque, also called locking torque. The deformed thread of the nut itself or the diameter of the built-in metal locking ring is slightly smaller than the external thread of the bolt, and the nut needs to overcome the friction resistance, which successfully prevents the nut from loosening without external force.

Leave Your Message

IFI100/107 Hex Nuts All Metal Lock Nuts Deformed

China Lock Nut Supplier

Provide excellent service, first-class product quality and perfect after-sales support.

Related Products

  • IFI100/107 Hex Nuts All Metal Lock Nuts Deformed
  • IFI100/107 Hex Nuts All Metal Lock Nuts Deformed
  • IFI100/107 Hex Nuts All Metal Lock Nuts Deformed
  • IFI100/107 Hex Nuts All Metal Lock Nuts Deformed

Main Features

  • The advantages of all-metal hexagonal locking nuts mainly include the following aspects:
  • High anti-loosening reliability: All-metal hexagonal locking nuts produce an interference fit relationship between threads through the deformation of the thread bottom hole or the deformation of the thread tooth shape, thereby increasing the friction and achieving the purpose of anti-loosening. This design performs well under vibration conditions and has high anti-loosening reliability.
  • Wide range of application: Locking nuts made of different metal materials can be used in working conditions at different temperatures and are suitable for a variety of environments and application scenarios.
  • Standard: IFI-100/107-2002
  • Specification: 4#-1-1/2
  • Grade: Grade 2/Grade 5/Grade 8/A2/A4
  • Material: Carbon steel / Stainless steel
  • Surface: Plain / Zinc plated / VZD / ZSML / Zinc-Nickel / ZNBHL/ ZNSHL / E2J / ZFSHL / ZFSHR / Delta-Tone /HDG / TZN

Technical Parameters

Products Dimensions

Thread Spec.  D

2#

4#

6#

8#

10#

12#

1/4

5/16

3/8

7/16

1/2

9/16

5/8

3/4

P

Thread
Pitch

Coarse

56

40

32

32

24

24

20

18

16

14

13

12

11

10

Fine 1

64

48

40

36

32

28

28

24

24

20

20

18

18

16

Fine 2

/

/

/

/

/

/

20

18

16

14

12

12

11

10

S

Max

/

0.251

0.313

0.345

0.376

0.438

0.438

0.502

0.564

0.689

0.752

0.877

0.94

1.127

Min

/

0.241

0.302

0.332

0.362

0.423

0.428

0.489

0.551

0.675

0.736

0.861

0.922

1.088

e

Min

/

0.275

0.344

0.378

0.413

0.482

0.488

0.557

0.628

0.766

0.84

0.982

1.051

1.24

m

Max

/

0.163

0.171

0.191

0.241

0.241

0.288

0.336

0.415

0.463

0.573

0.621

0.731

0.827

Min

/

0.087

0.102

0.117

0.117

0.148

0.212

0.258

0.32

0.365

0.427

0.473

0.535

0.617

mw

Min

/

0.066

0.075

0.083

0.083

0.103

0.145

0.166

0.198

0.223

0.262

0.286

0.329

0.382

Weight

1000PCS/Kg

/














Thread Spec.  D

7/8

1

1 1/8

1 1/4

1 3/8

1 1/2

1 5/8

1 3/4

1 7/8

2

2 1/4

2 1/2

2 3/4

3

P

Thread
Pitch

Coarse

9

8

7

7

6

6

/

/

/

/

/

/

/

/

Fine 1

14

12

12

12

12

12

/

/

/

/

/

/

/

/

Fine 2

9

8





/

/

/

/

/

/

/

/

S

Max

1.314

1.502

1.689

1.877

2.064

2.252

/

/

/

/

/

/

/

/

Min

1.269

1.45

1.631

1.812

1.994

2.175

/

/

/

/

/

/

/

/

e

Min

1.477

1.653

1.859

2.066

2.273

2.48

/

/

/

/

/

/

/

/

m

Max

0.922

1.018

1.176

1.272

1.399

1.526

/

/

/

/

/

/

/

/

Min

0.724

0.831

0.939

1.03

1.138

1.245

/

/

/

/

/

/

/

/

mw

Min

0.45

0.513

0.576

0.628

0.681

0.757

/

/

/

/

/

/

/

/

Weight

1000PCS/Kg







/

/

/

/

/

/

/

/


Application Field

  • Suitable for different occasions, mainly used in construction machinery, agricultural and forestry machinery, metallurgical field, automobile industry, ocean engineering and other fields.

  • Ocean Engineering
    Ocean Engineering
  • Automobile Industry
    Automobile Industry
  • Metallurgical Field
    Metallurgical Field
  • Agricultural & Forestry Machinery
    Agricultural & Forestry Machinery
  • Ocean Vessel
    Ocean Vessel
  • Construction Machinery
    Construction Machinery
  • Railway Transportation
    Railway Transportation
  • Mine And Tunnel Machinery
    Mine And Tunnel Machinery
