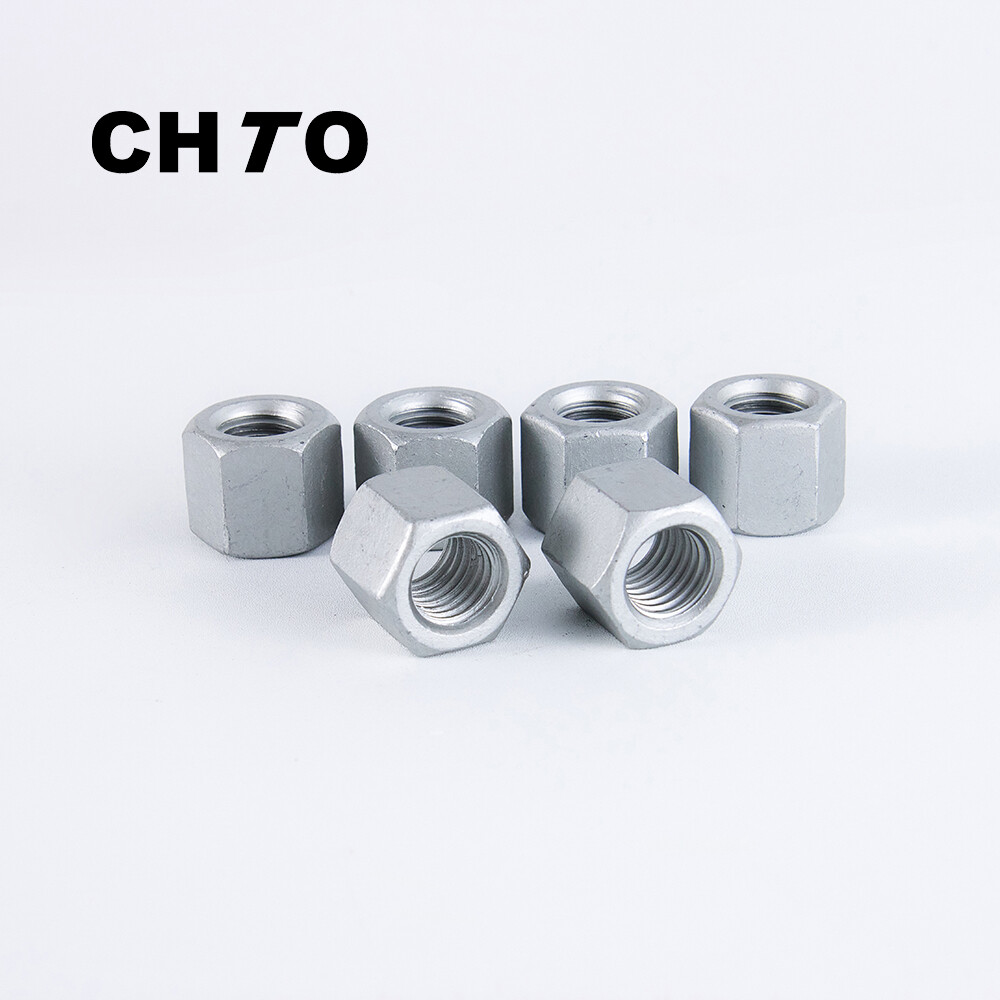

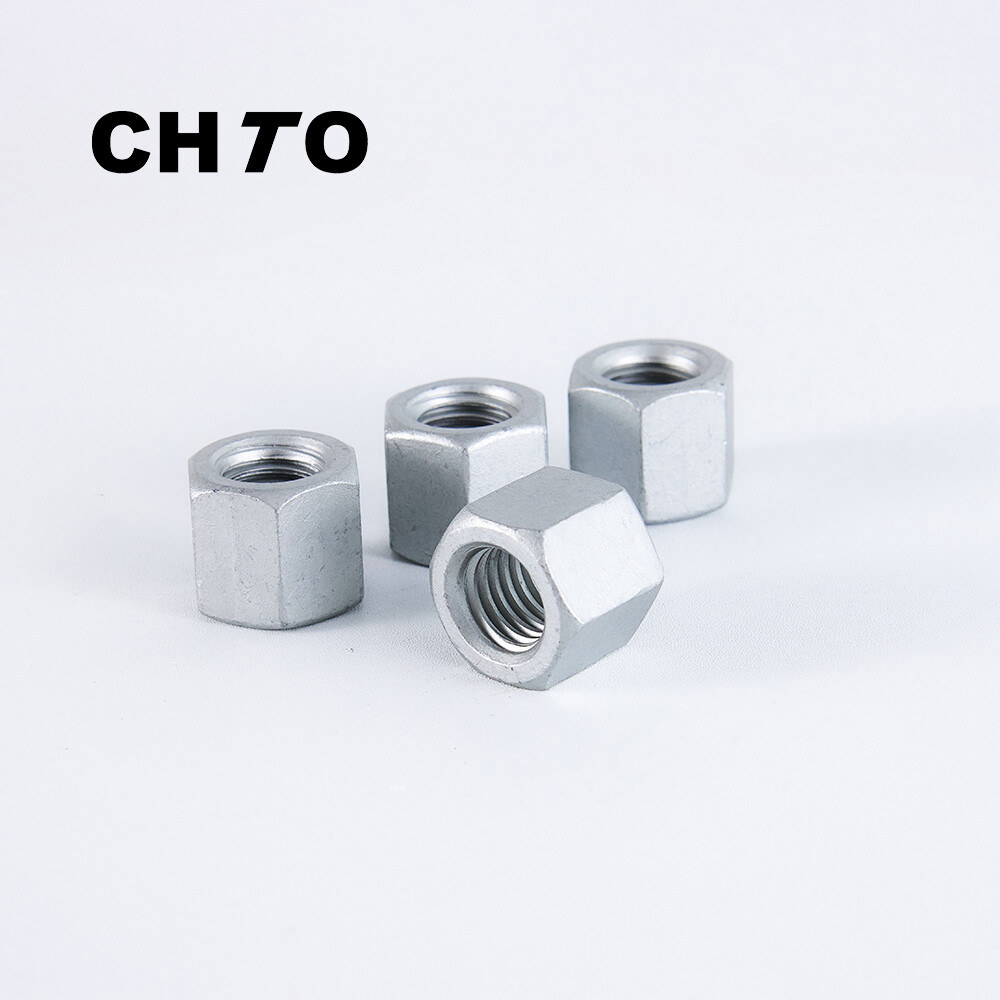

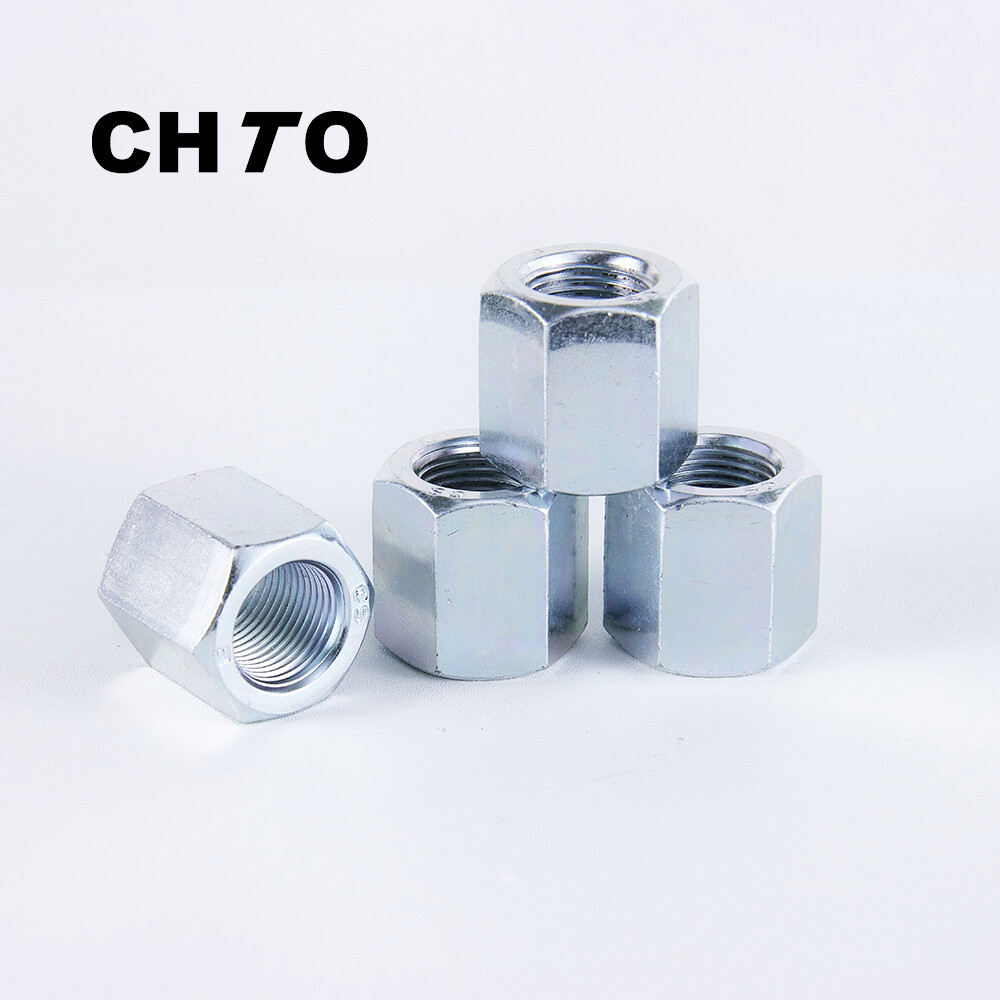

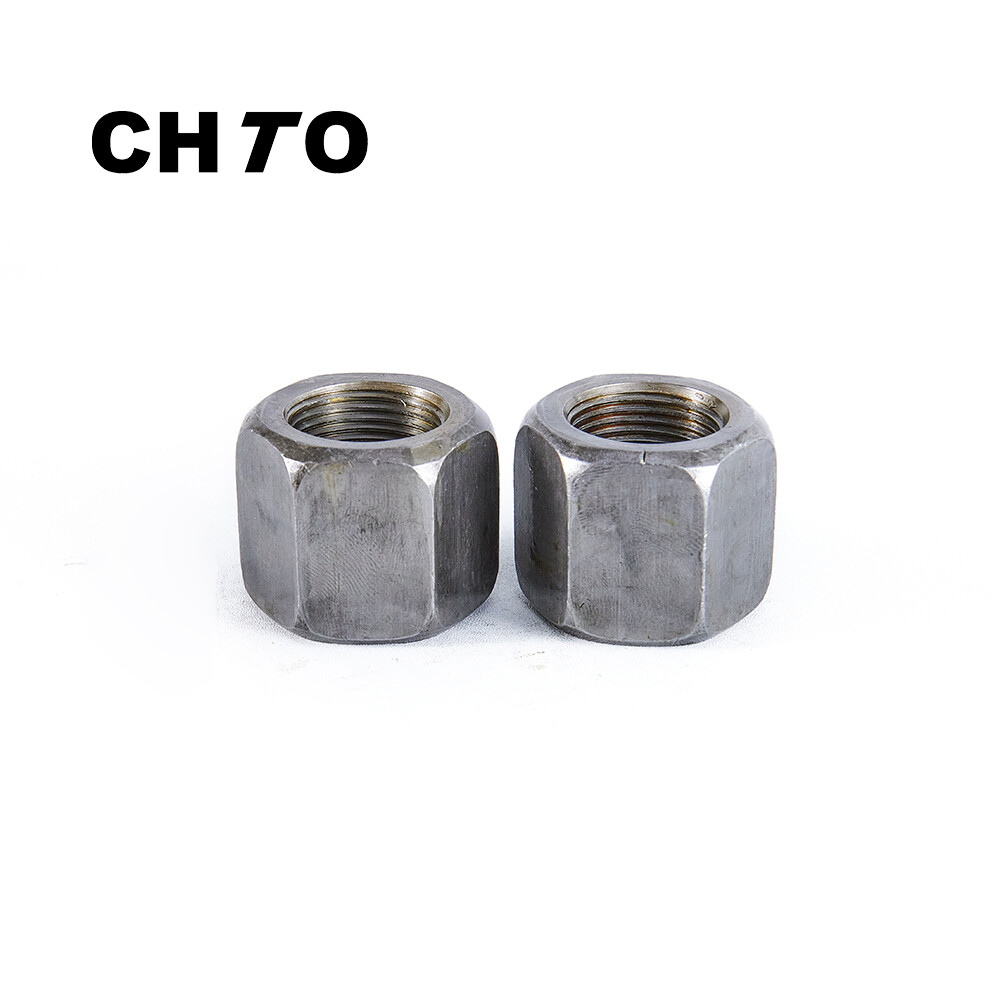

This nut distributes stress through increased thickness, reducing the risk of thread stripping, making it a critical component in heavy-duty structures.
Leave Your Message
China Lock Nut Supplier
Provide excellent service, first-class product quality and perfect after-sales support.
Related Products
Main Features
1. Thickened Design
– Thickness is approximately 30% to 50% greater than that of standard hex nuts (such as GB/T 6170), providing a larger load-bearing area and thread contact length.
– Common specifications include GB/T 6175 (Chinese Standard) and ASME B18.2.2 (American Standard for Heavy Nuts).
2. High Strength and Durability
– Suitable for high-load or vibration environments, such as steel bridges and heavy machinery.
– Often used with high-strength bolts (such as Grade 8.8 and Grade 10.9).
3. Surface Treatment
– Available options include galvanizing, black plating, and Dacromet coating for improved corrosion resistance.
4. Across-Flat Dimensions
– Same as standard hexagonal nuts (e.g., M12 nuts have a 19mm across-flat dimension), but with a greater height.
Technical Parameters
Products Dimensions
Application Field
Suitable for different occasions, mainly used in construction machinery, agricultural and forestry machinery, metallurgical field, automobile industry, ocean engineering and other fields.
![Ocean Engineering]( "Ocean Engineering")
Ocean Engineering![Automobile Industry]( "Automobile Industry")
Automobile Industry![Metallurgical Field]( "Metallurgical Field")
Metallurgical Field![Agricultural & Forestry Machinery]( "Agricultural & Forestry Machinery")
Agricultural & Forestry Machinery![Ocean Vessel]( "Ocean Vessel")
Ocean Vessel![Construction Machinery]( "Construction Machinery")
Construction Machinery![Railway Transportation]( "Railway Transportation")
Railway Transportation![Mine And Tunnel Machinery]( "Mine And Tunnel Machinery")
Mine And Tunnel Machinery
