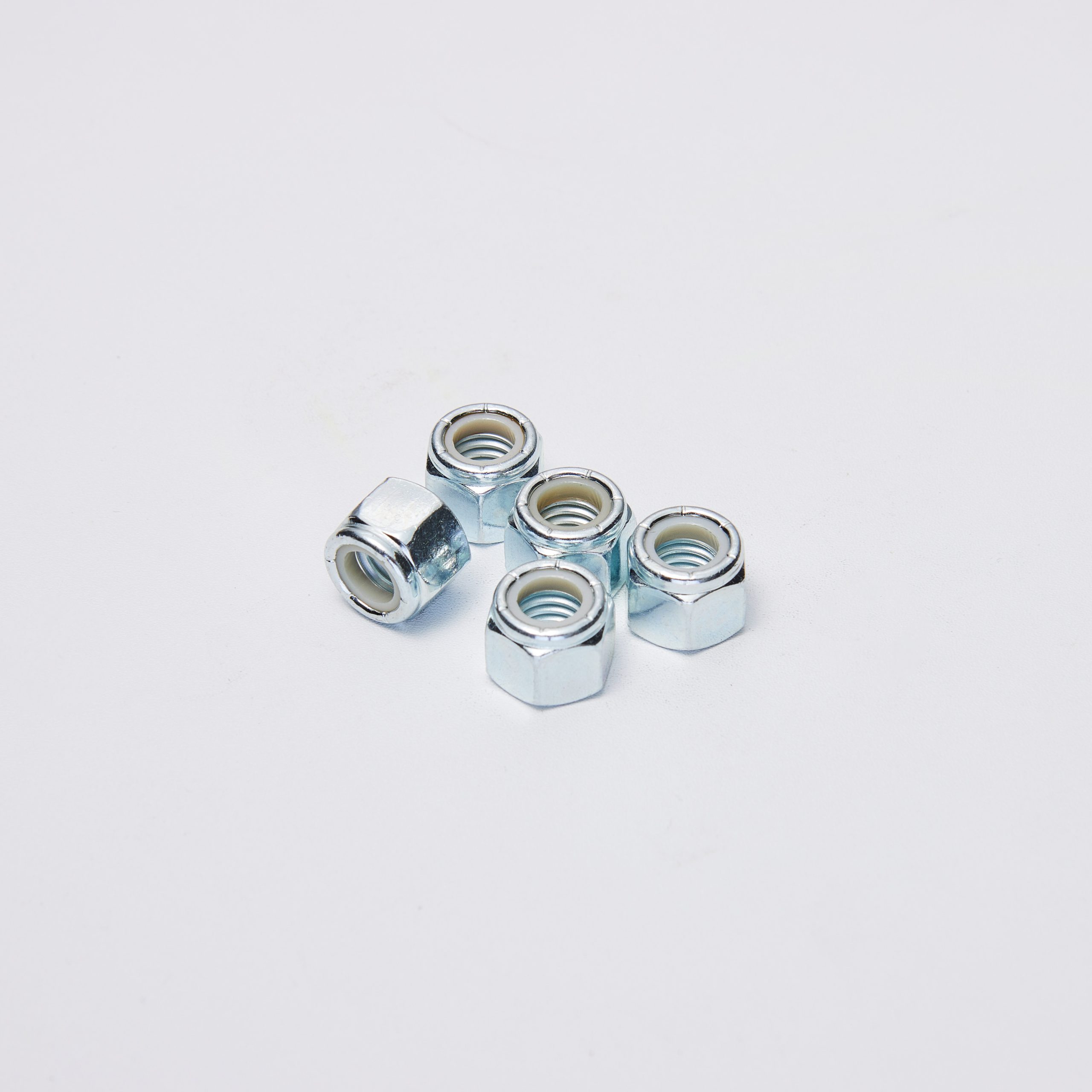

ASME B18.16.6-NTM-NTE Nylon Insert Hex Locking Nuts Thin Type

Hexagonal nylon locking nuts usually consist of a metal nut body and a built-in nylon washer or insert. The nylon washer is usually embedded in the annular groove on the top of the nut. When the nut is tightened, the nylon material is squeezed and deformed, filling the thread gap and generating additional friction, thereby preventing the nut from loosening due to vibration or impact.

Leave Your Message



ASME B18.16.6-NTM-NTE Nylon Insert Hex Locking Nuts Thin Type



China Lock Nut Supplier

Provide excellent service, first-class product quality and perfect after-sales support.

Related Products

Main Features

Strong anti-loosening ability: The deformation of nylon washers can effectively fill the thread gap and provide long-lasting locking force.
Anti-vibration: Suitable for high-vibration environments such as automobiles, industrial machinery, etc.
Limited reusability: The locking effect of nylon washers will gradually decrease after multiple disassembly, so frequent disassembly and assembly is not recommended.
Corrosion resistance: Some products are made of stainless steel or galvanized, which are suitable for harsh environments.
Standard: ASME B18.16.6-NTM-NTE
Specification: 2#-1-1/2
Grade: Grade 2/Grade 5/Grade 8/A2/A4
Material: Carbon steel / Stainless steel
Surface: Plain / Zinc plated / VZD / ZSML / Zinc-Nickel / ZNBHL/ ZNSHL / E2J / ZFSHL / ZFSHR / Delta-Tone /HDG / TZN

Technical Parameters

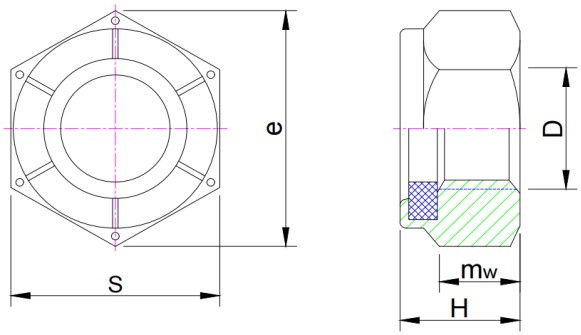

Products Dimensions

Thread spec D			2#	4#	6#	8#	10#	12#	1/4	5/16	3/8	7/16	1/2	9/16	5/8	3/4
P	Pitch	Coarse	56	40	32	32	24	24	20	18	16	14	13	12	11	10
		Fine 1	64	48	40	36	32	28	28	24	24	20	20	18	18	16
		Fine 2	/	/	/	/	/	/	20	18	16	14	12	12	11	10
S	Max		0.251	0.251	0.313	0.345	0.376	0.439	0.439	0.502	0.564	0.627	0.752	0.877	0.94	1.064
S	Min		0.243	0.243	0.305	0.336	0.367	0.43	0.43	0.492	0.553	0.616	0.741	0.865	0.928	1.052
e	Min		0.268	0.268	0.339	0.374	0.41	0.482	0.482	0.552	0.622	0.698	0.837	0.978	1.051	1.191
m	Max		0.124	0.124	0.14	0.187	0.187	0.218	0.218	0.265	0.281	0.328	0.328	0.374	0.406	0.421
m	Min		0.094	0.094	0.11	0.157	0.157	0.188	0.188	0.235	0.251	0.298	0.298	0.344	0.376	0.391
mw	Min		0.075	0.075	0.09	0.11	0.11	0.125	0.125	0.158	0.15	0.225	0.19	0.225	0.265	0.288
Weight	1000PCS/Kg
Thread spec D			7/8	1	1 1/8	1 1/4	1 3/8	1 1/2	1 5/8	1 3/4	1 7/8	2	2 1/4	2 1/2	2 3/4	3
P	Pitch	Coarse	9	8	7	7	6	6	/	/	/	/	/	/	/	/
		Fine 1	14	12	12	12	12	12	/	/	/	/	/	/	/	/
		Fine 2	9	8					/	/	/	/	/	/	/	/
S	Max		1.252	1.44	1.627	1.815	2.008	2.197	/	/	/	/	/	/	/	/
S	Min		1.239	1.427	1.614	1.801	1.973	2.159	/	/	/	/	/	/	/	/
e	Min		1.403	1.615	1.826	2.038	2.232	2.444	/	/	/	/	/	/	/	/
m	Max		0.484	0.578	0.672	0.765	0.821	0.828	/	/	/	/	/	/	/	/
m	Min		0.454	0.516	0.61	0.703	0.759	0.766	/	/	/	/	/	/	/	/
mw	Min		0.34	0.405	0.5	0.523	0.493	0.565	/	/	/	/	/	/	/	/
Weight	1000PCS/Kg								/	/	/	/	/	/	/	/

Application Field

Suitable for different occasions, mainly used in construction machinery, agricultural and forestry machinery, metallurgical field, automobile industry, ocean engineering and other fields.

Ocean Engineering
Automobile Industry
Metallurgical Field
Agricultural & Forestry Machinery
Ocean Vessel
Construction Machinery
Railway Transportation
Mine And Tunnel Machinery
