DIN11023 Shear Pin
DIN11023 Shear Pin
Safety Pins in the fastener industry are commonly referred to in English as Shear Pin (most widely used), but can also be called Safety Pin or Shear Bolt depending on the specific type.
A safety pin is an overload protection device typically installed in mechanical transmission systems or structural connections. When the equipment experiences torque, tension, or impact forces exceeding a set threshold, the safety pin deliberately fractures first, thereby disconnecting power transmission or releasing the connection to protect core components from damage. Its working principle is based on shear strength design, and once broken, it requires manual replacement.

Leave Your Message

DIN11023 Shear Pin

China Lock Nut Supplier

Provide excellent service, first-class product quality and perfect after-sales support.

Related Products

  • DIN11023 Shear Pin
  • DIN11023 Shear Pin
  • DIN11023 Shear Pin
  • DIN11023 Shear Pin

Main Features

* Precise Shear Strength: Customizable in material and diameter according to protection requirements, ensuring accurate fracture at the designed load.

* Standardized Design: Common forms include straight pins, grooved pins, and threaded pins.

* Low Cost, High Benefit: Sacrifices itself to protect expensive equipment, reducing repair costs and downtime.


Technical Parameters


  Material: Spring steel, A2/304, A4/316

  Surface Treatment: Blackening, zinc plating, zinc-nickel alloy, Dacromet, passivation (bare finish)

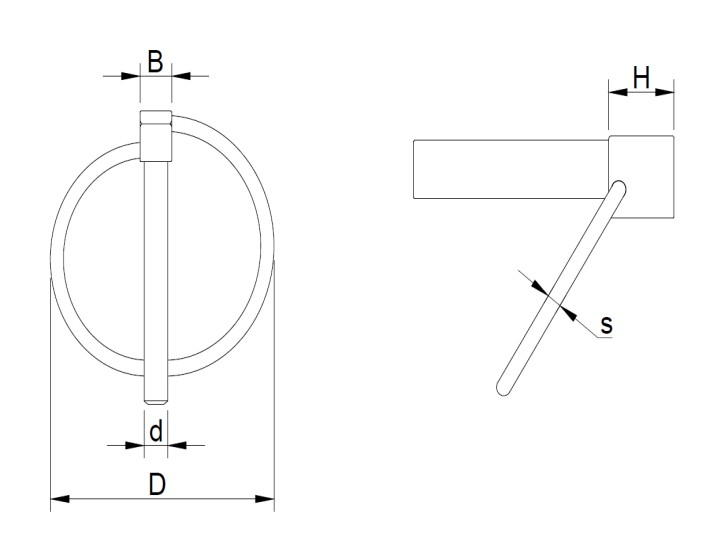

Products Dimensions

d型号4.5568101112
公差4.3-4.55.8-65.8-67.8-89.8-1010.8-1111.8-12
D39-4143-4548-5048-5051-5351-5351-53
S2.53333.53.53.5
H88910.5121213
B6679121213
L36404545454545


Application Field

* Overload protection for fans, pumps, and conveyors

* Torque limitation in couplings and clutches

* Hydraulic overload protection in construction machinery

* Structural safety devices in aerospace vehicles

* Safety braking systems in amusement rides
