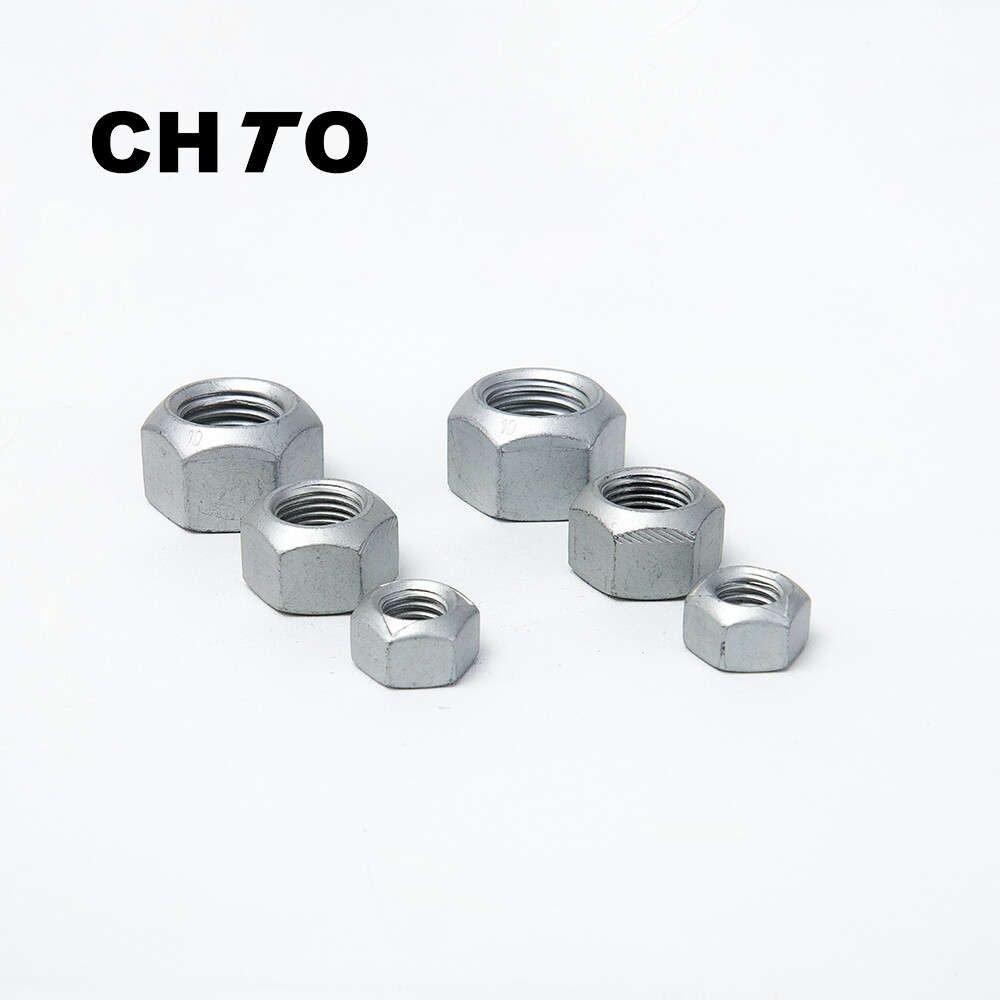

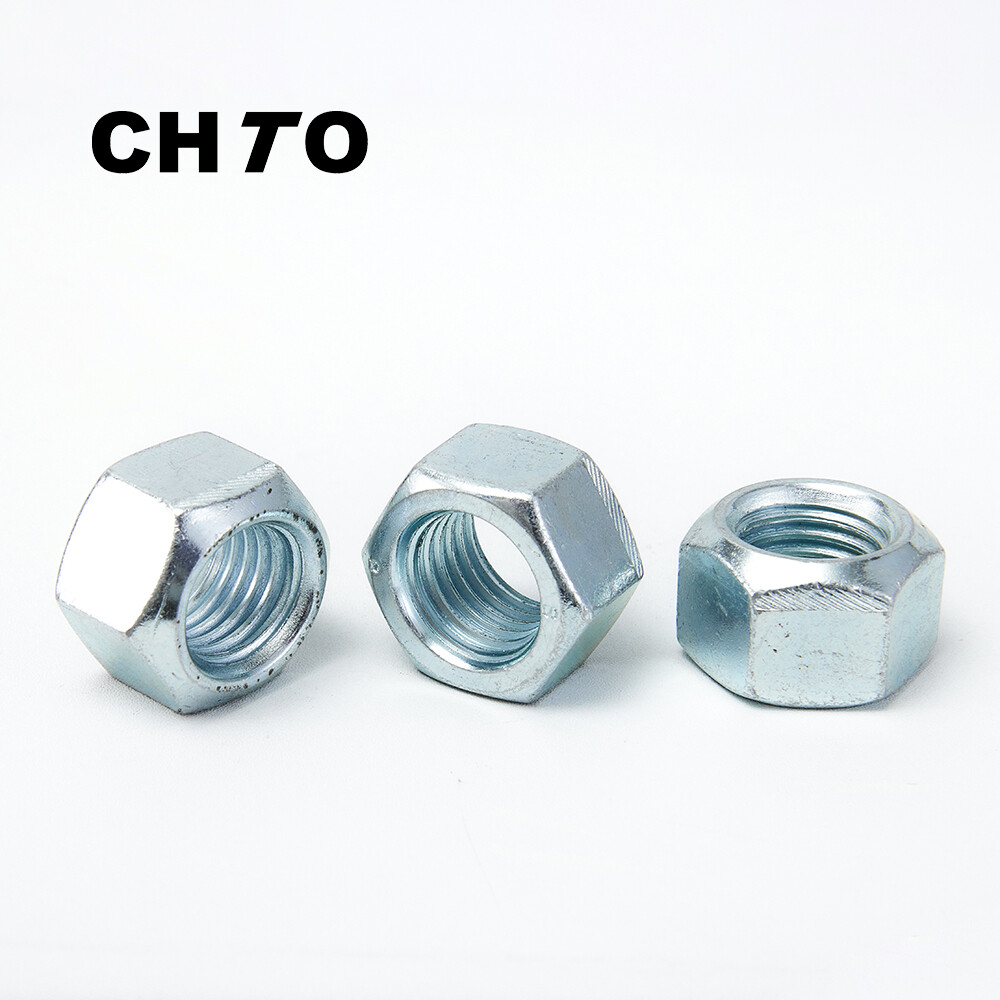

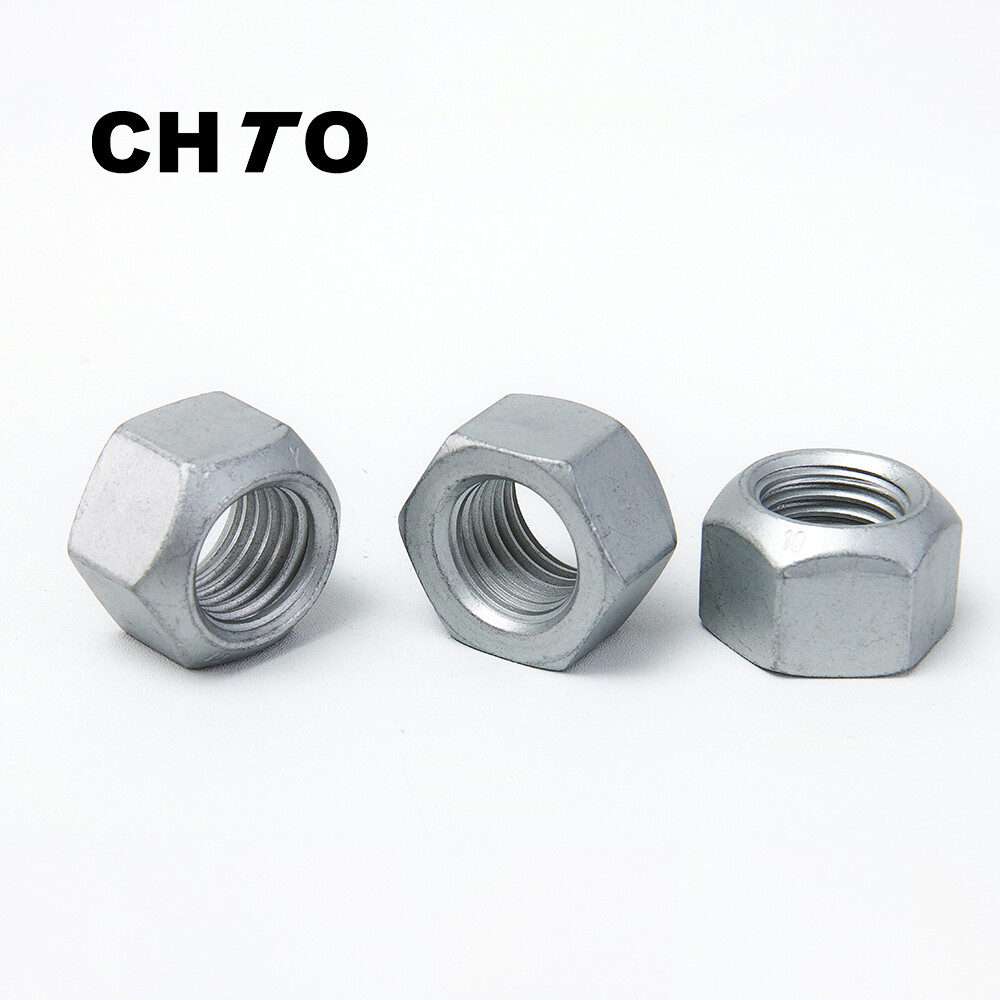

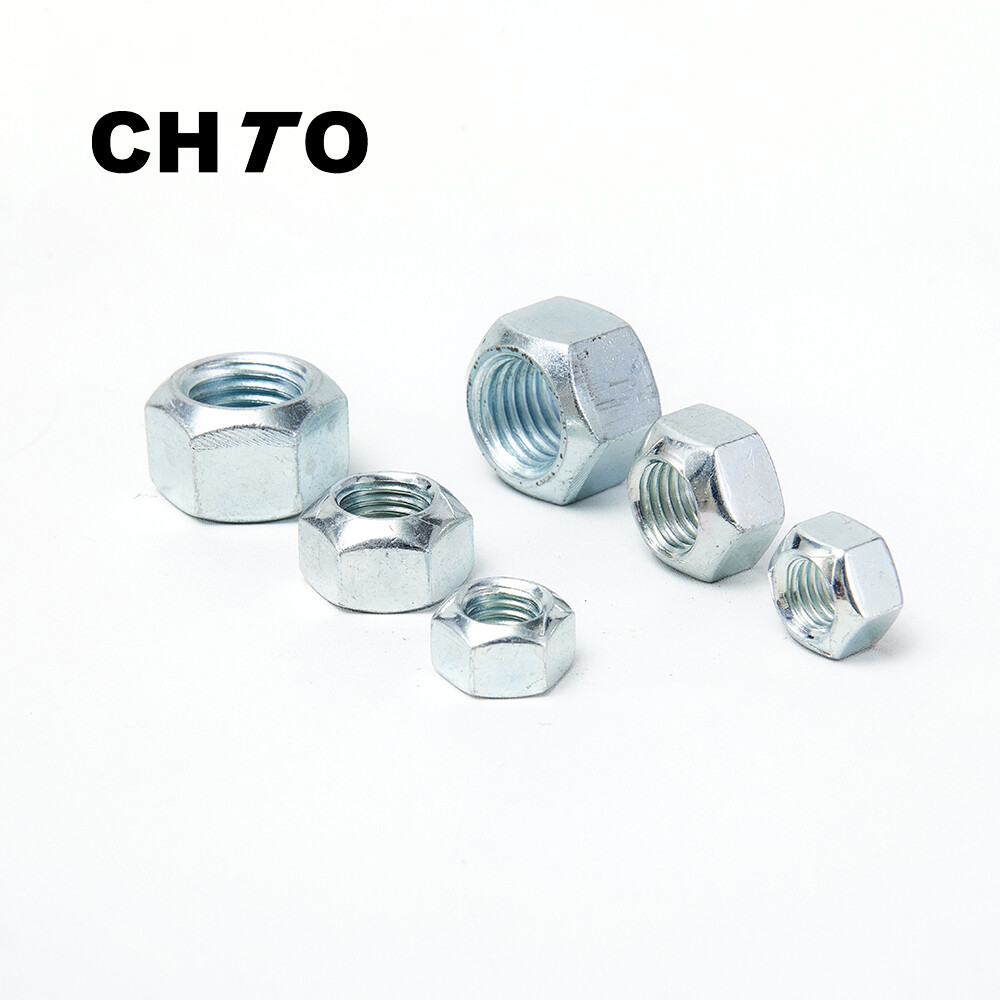

DIN980 Hex Nuts All Metal Lock Nuts

When the nut is screwed in, due to the locking function of the nut, the torque generated by screwing in the nut is called effective torque, also called locking torque. The deformed thread of the nut itself or the diameter of the built-in metal locking ring is slightly smaller than the external thread of the bolt, and the nut needs to overcome the friction resistance, which successfully prevents the nut from loosening without external force.
Structural design:
1. DIN980V type 2. DIN980M type

Leave Your Message





China Lock Nut Supplier

Provide excellent service, first-class product quality and perfect after-sales support.

Related Products

Main Features

The advantages of all-metal hexagonal locking nuts mainly include the following aspects:
High anti-loosening reliability: All-metal hexagonal locking nuts produce an interference fit relationship between threads through the deformation of the thread bottom hole or the deformation of the thread tooth shape, thereby increasing the friction and achieving the purpose of anti-loosening. This design performs well under vibration conditions and has high anti-loosening reliability.
Wide range of application: Locking nuts made of different metal materials can be used in working conditions at different temperatures and are suitable for a variety of environments and application scenarios.
Reusability: All-metal locking nuts can be reused, but the repeated installation should not exceed 5 times, and lubrication should be added before use.
Standard: DIN 980
Specification: M3-M45
Grade: ST-8/10/12/ A2-70/A4-80
Material: Carbon steel / Stainless steel
Surface: Plain / Zinc plated / VZD / ZSML / Zinc-Nickel / ZNBHL/ ZNSHL / E2J / ZFSHL / ZFSHR / Delta-Tone / HDG / TZN

Technical Parameters

Products Dimensions

Thread spec.			M2	M2.5	M3	M3.5	M4	M5	M6	M8	M10	M12	M14	M16	M18	M20
P	Thread Pitch	Coarse	/	/	0.5	/	0.7	0.8	1	1.25	1.5	1.75	2	2	2.5	2.5
		Fine 1	/	/	0.35	/	0.5	0.5	0.75	1	1.25	1.5	1.5	1.5	2	2
		Fine 1	/	/	/	/	/	/	/	0.75	1	1.25	1	1	1.5	1.5
		Fine 1	/	/	/	/	/	/	/	/	/	1	/	/	/	/
s	Max		/	/	5.5	/	7	8	10	13	17	19	22	24	27	30
s	Min		/	/	5.32	/	6.78	7.78	9.78	12.73	16.73	18.67	21.67	23.67	26.16	29.16
e	Min		/	/	6.01	/	7.66	8.79	11.05	14.38	18.9	21.1	24.49	26.75	29.56	32.95
m	Max		/	/	3.7	/	4.2	5.1	6	8	10	12	14	16	18	20
m	Min		/	/	3.4	/	3.9	4.8	5.7	7.5	9	11	12	14	16	18
mw	Min		/	/	1.65	/	2.2	2.75	3.3	4.4	5.5	6.6	7.7	8.8	9.9	11
Weight	1000PSC/Kg		/	/	/	/	0.85	1.6	2.8	5.9	13.2	18.4	28.4	37.8	52.8	73.5

Application Field

Suitable for different occasions, mainly used in construction machinery, agricultural and forestry machinery, metallurgical field, automobile industry, ocean engineering and other fields.

Ocean Engineering
Automobile Industry
Metallurgical Field
Agricultural & Forestry Machinery
Ocean Vessel
Construction Machinery
Railway Transportation
Mine And Tunnel Machinery
