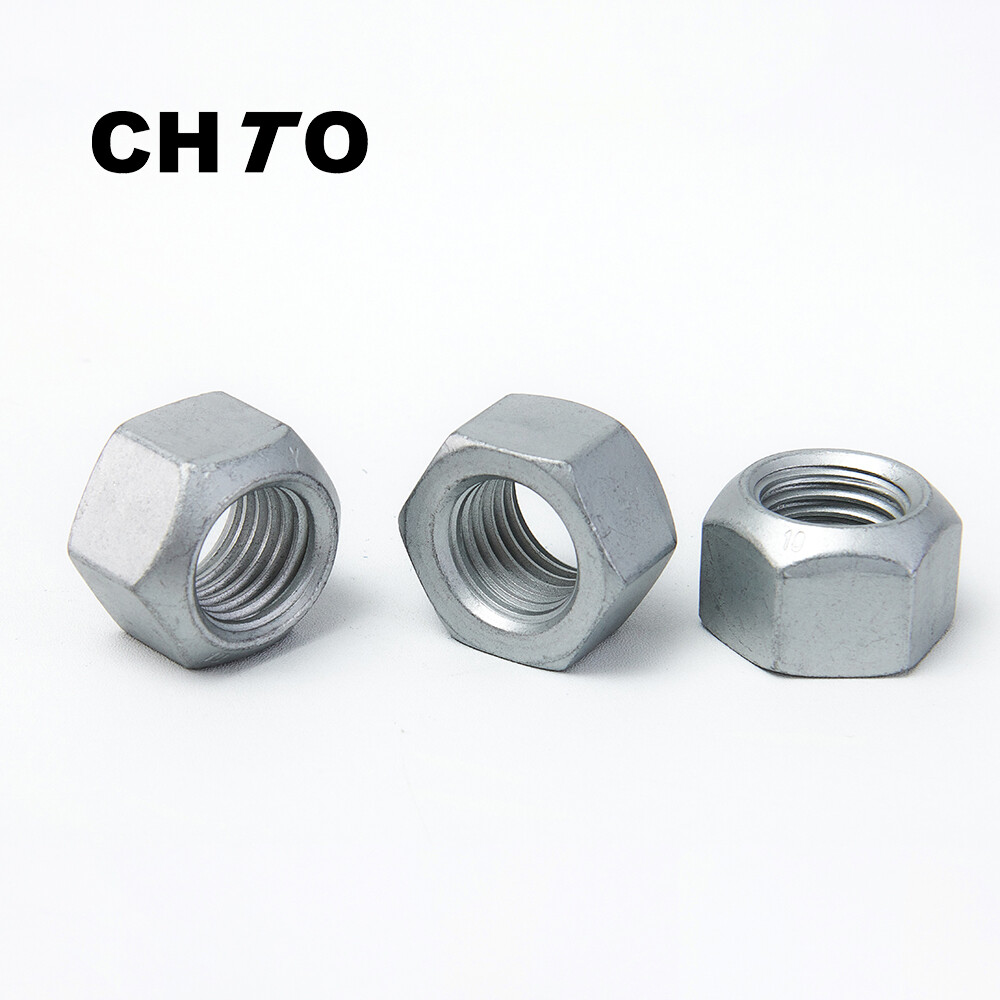

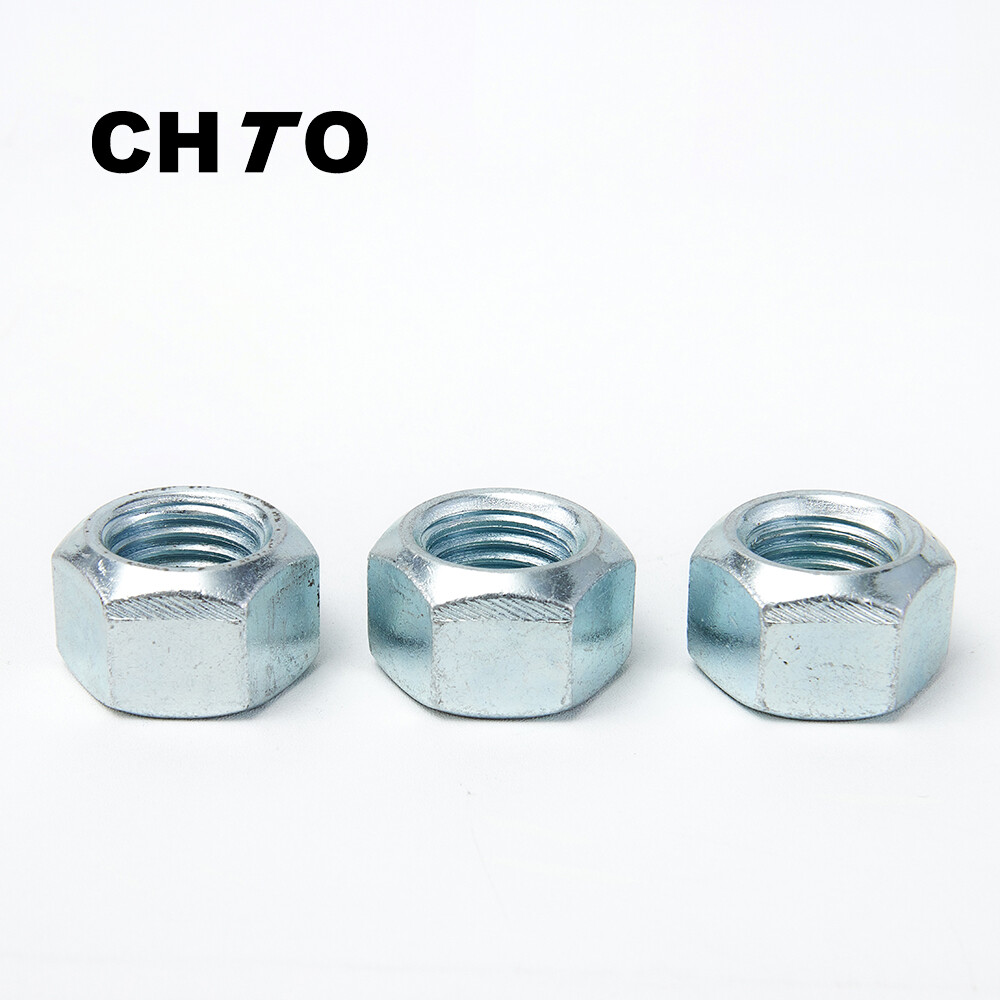

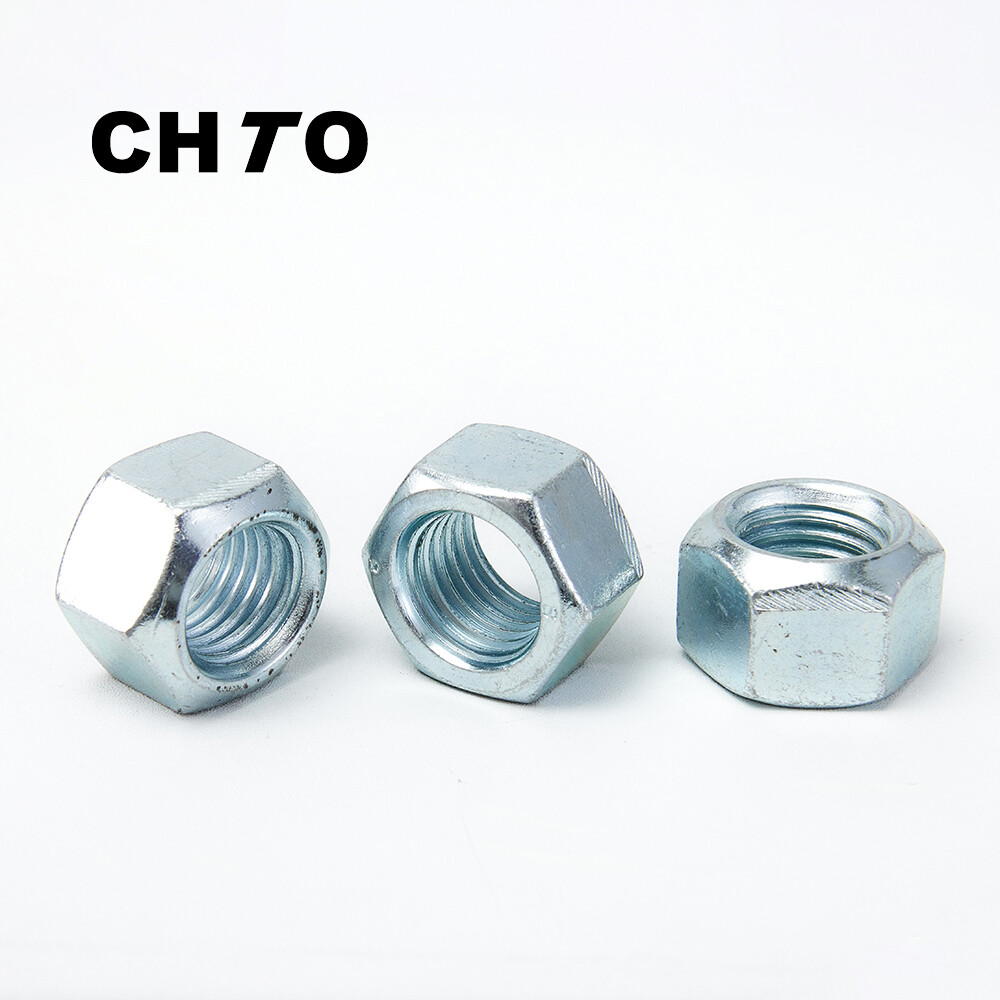

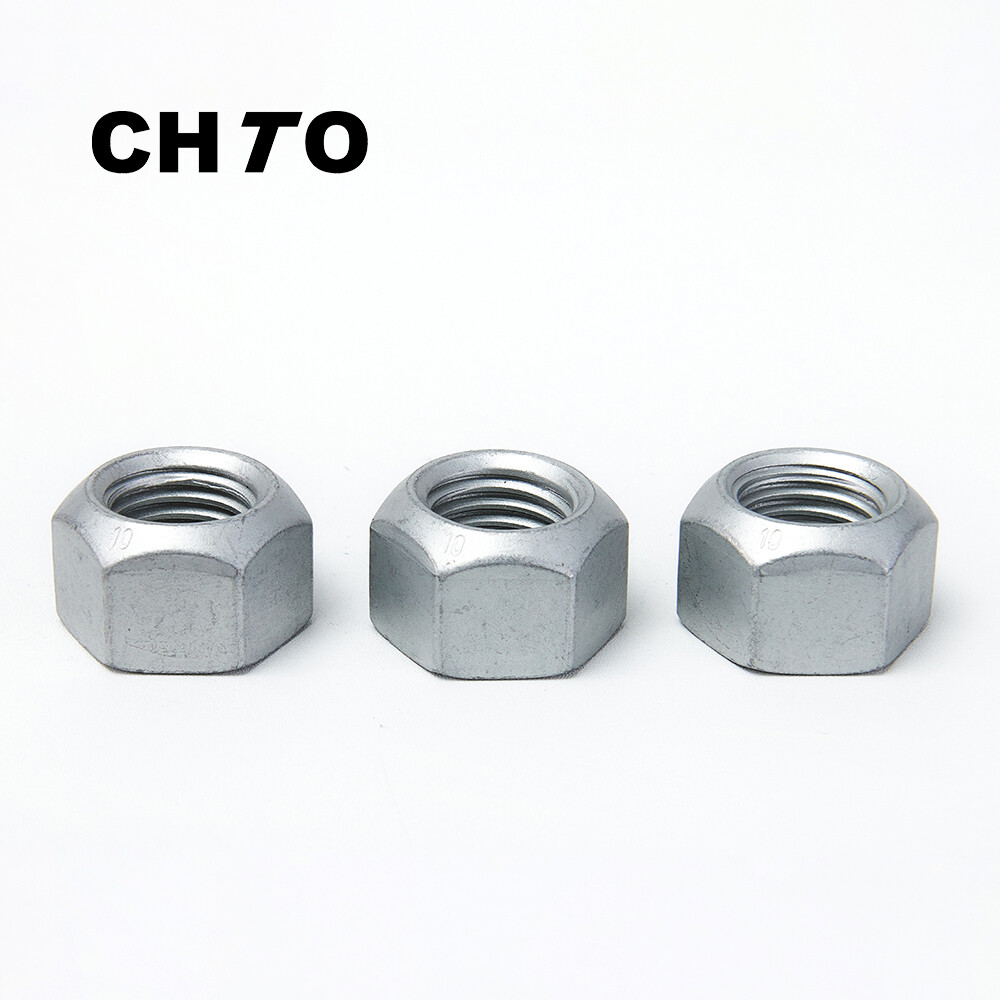

ISO7719 Hex Nuts All Metal Lock Nuts

Home / Hexagonal all-metal locking nut / Nuts / ISO7719 Hex Nuts All Metal Lock Nuts

ISO7719 Hex Nuts All Metal Lock Nuts

When the nut is screwed in, due to the locking function of the nut, the torque generated by screwing in the nut is called effective torque, also called locking torque. The deformed thread of the nut itself or the diameter of the built-in metal locking ring is slightly smaller than the external thread of the bolt, and the nut needs to overcome the friction resistance, which successfully prevents the nut from loosening without external force.

Leave Your Message



ISO7719 Hex Nuts All Metal Lock Nuts



China Lock Nut Supplier

Provide excellent service, first-class product quality and perfect after-sales support.

Related Products

Main Features

The advantages of all-metal hexagonal locking nuts mainly include the following aspects:
High anti-loosening reliability: All-metal hexagonal locking nuts produce an interference fit relationship between threads through the deformation of the thread bottom hole or the deformation of the thread tooth shape, thereby increasing the friction and achieving the purpose of anti-loosening. This design performs well under vibration conditions and has high anti-loosening reliability.
Wide range of application: Locking nuts made of different metal materials can be used in working conditions at different temperatures and are suitable for a variety of environments and application scenarios.
Standard: ISO 7719 GB6184
Specification: M5~M36
Grade: ST-8/10/12/ A2-70/A4-80
Material: Carbon steel / Stainless steel
Surface: Plain / Zinc plated / VZD / ZSML/ Zinc-Nickel / ZNBHL/ ZNSHL / E2J / ZFSHL / ZFSHR / Delta-Tone / HDG / TZN

Technical Parameters

Products Dimensions

Thread Spec.

M2

M2.5

M3

M3.5

M4

M5

M6

M8

M10

M12

M14

M16

M18

M20

P

Thread
Pitch

Coarse

/

/

/

/

/

0.8

1

1.25

1.5

1.75

2

2

2.5

2.5

Fine 1

/

/

/

/

/

/

/

/

/

/

/

/

/

/

Fine 2

/

/

/

/

/

/

/

/

/

/

/

/

/

/

Fine 3

/

/

/

/

/

/

/

/

/

/

/

/

/

/

S

Max

/

/

/

/

/

8

10

13

16

18

21

24

27

30

Min

/

/

/

/

/

7.78

9.78

12.73

15.73

17.73

20.67

23.67

26.16

29.16

e

Min

/

/

/

/

/

3.52

3.92

5.15

6.43

8.3

9.68

11.28

12.08

13.52

m

Max

/

/

/

/

/

5.3

5.9

7.1

9

11.6

13.2

15.2

17

19

Min

/

/

/

/

/

4.8

5.4

6.44

8.04

10.37

12.1

14.1

15.01

16.9

mw

Min

/

/

/

/

/

3.52

3.92

5.15

6.43

8.3

9.68

11.28

12.08

13.52

Weight

1000PCS/Kg

/

/

/

/

/

1.5

2.4

5.2

10.5

16

24

35

46

60

Thread Spec.

M22

M24

M27

M30

M33

M36

M39

M42

M45

M48

M52

M56

M60

M64

P

Thread
Pitch

Coarse

2.5

3

/

3.5

/

4

/

/

/

/

/

/

/

/

Fine 1

/

/

/

/

/

/

/

/

/

/

/

/

/

/

Fine 2

/

/

/

/

/

/

/

/

/

/

/

/

/

/

Fine 3

/

/

/

/

/

/

/

/

/

/

/

/

/

/

S

Max

34

36

/

46

/

55

/

/

/

/

/

/

/

/

Min

33

35

/

45

/

53.8

/

/

/

/

/

/

/

/

e

Min

14.5

16.16

/

19.44

/

23.52

/

/

/

/

/

/

/

/

m

Max

21

23

/

26.9

/

32.5

/

/

/

/

/

/

/

/

Min

18.1

20.2

/

24.3

/

29.4

/

/

/

/

/

/

/

/

mw

Min

14.5

16.16

/

19.44

/

23.52

/

/

/

/

/

/

/

/

Weight

1000PCS/Kg

88

108

/

220

/

390

/

/

/

/

/

/

/

/

Application Field

Suitable for different occasions, mainly used in construction machinery, agricultural and forestry machinery, metallurgical field, automobile industry, ocean engineering and other fields.

Ocean Engineering
Automobile Industry
Metallurgical Field
Agricultural & Forestry Machinery
Ocean Vessel
Construction Machinery
Railway Transportation
Mine And Tunnel Machinery
